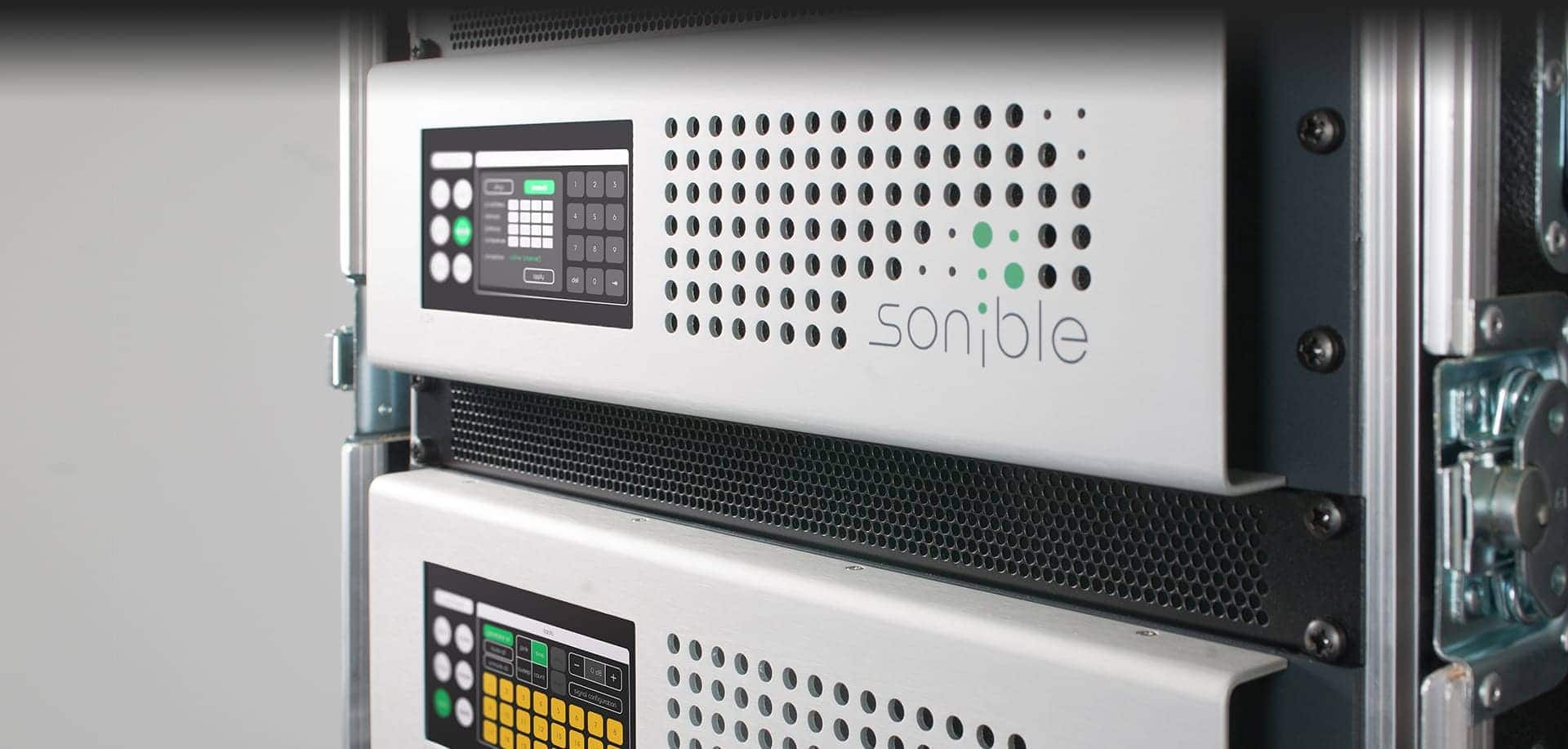

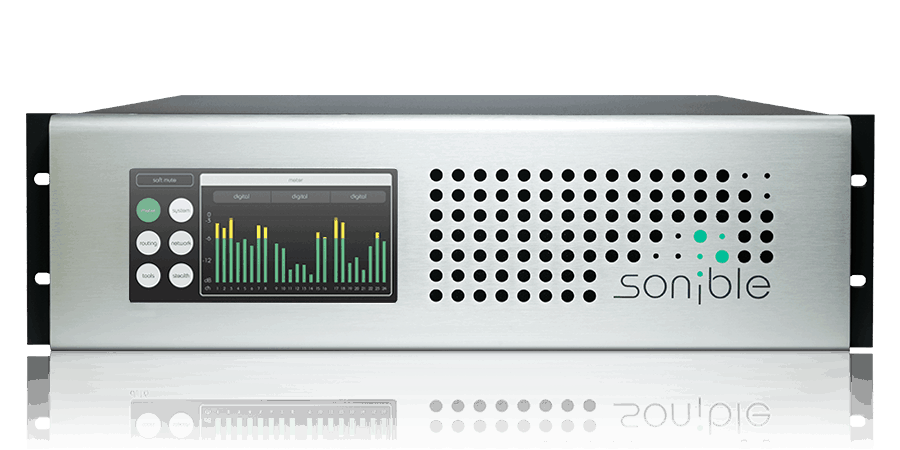

d:24

sonible’s d:24 multi-channel amplifier delivers brilliant sound for high-end audio installations in science, research, industry and other applications: reliable, true to the signal, compact and unique in its class.


  • 24 x 250 Watts of power

  • Completely noise-free with SNR > 112dB per channel

  • Multi-channel amplification at only 3 RU

Features

Precision meets design


Analog & digital

Flexible Interfaces

As a true team player, the d:24 effortlessly cooperates with pre-installed systems. The analog inputs of the base model are expandable with three different digital input options: MADI (coaxial and optical), DANTE and AES/EBU. All digital modules are equipped with high-end D/A converters and allow free routing of every single channel. The good news: the modules can easily be retrofitted.






All-in-One

DSP power inside

For maximum comfort with every installation, the d:24 comes with a set of convenient signal processing tools. The optional DSP module offers an equalizer, a compressor, a limiter, and a delay. Even with complex installations, the multi-channel amplifier can thus function as a compact all-in-one solution.


The DSP option turns the d:24 into a flexible partner for implementing compact systems with a large number of speakers – for example, when working with modern 3D audio formats such as Higher Order Ambisonics (HOA) or Wave Field Synthesis (WFS).



Web based interface

Simple remote control

All settings of the d:series amplifiers can be remote-controlled via Ethernet connection and a web interface. The web-based control allows for making instant adjustments to the system. Additionally, the d:series amplifiers can be integrated in automation systems via a RESTful API.


For critical development work or sensitive installations, the d:24 additionally features an emergency stop. All channels can be deactivated via an optional hardware switch connected to the amplifier without having to deal with software.



Interested, but not sure yet?

Get in touch with us for more info!

Get a demo

Ask for a demo model or presentation Request Demo

Request a callback

by telephone or skype Schedule Call

Send us a message

via email Write Message

Demo request form

Leave us your data and we'll get in touch with you.





We're looking forward to talk with you!

We're happy to answer your questions in personal and show you what our products can to for your. Just schedule the right time for you and we'll get in contact (via old school telephone or Skype).




Send us a message

If you have any questions about our product, please send us a personal message and we'll get in touch with you as soon as possible.





Use Cases

Who is using our d:series?

Research & development

Leading academic institutions in multichannel audio like the IEM (Austria), the IRCAM (France) and the DTU (Denmark) are using our d:24 for research and development applications in the fields of virtual acoustics (HOA, WFS).

3D audio performance

The d:24 is ready for future of 3D audio performances. Compact, lightweight and reliable technology for creative visionaries. For example together with our unique 3D audio speaker IKO.


3D Audio Research Lab creates new possibilities in hearing aid research

The Acoustic Research Institute Vienna (ARI) is a pioneer in psychoacoustic research. sonible has planned and installed a compact 3D audio system.

Read more

Cristian Vogel: “In the music business you need to have a strong driving force within you.”

Cristian Vogel has worked with Radiohead, Jamie Lidell, Maximo Park and Chicks on Speed. He now creates immersive scenographic experiences.

Read more

64 speakers to re-create the cocktail party effect

The cocktail party effect however does not work as well for those who are wearing hearing aids. This system wants to solve that problem.

Read more

Specifications

Download area

Datasheet

General information

dimensions
482,6 mm x 132,5 mm x 517 mm
(19" / 3U / 20,4")
weight
approx. 20 kg (44 lbs)

Connections (analog)

power supply
1x powerCON 32A by Neutrik
analog inputs
3x DB-25 (Tascam analog norm)
network connection
1x etherCON by Neutrik
panic mute connector
4-pin Euroblock
speaker out (24 channels)
24x 2-pin Euroblock

MADI module*

optical MADI in/out
1x SC Connector (multimode)
coaxial MADI in/out
2x BNC 75 Ω

Dante module*

Dante port
2x RJ45 (primary, secondary)

AES/EBU, S/PDIF module*

digital inputs
2x DB-25 (Tascam analog norm)
(16 + 8 ch. ASRC)

DSP module*

DSP features (per channel)
EQ, compressor, limiter, delay
gain & delay
gains up to 20dB, delay up to 11.5 ms, phase invert
EQ
cross-over, low cut, high cut (Linkwitz-Riley, Bessel or Butterworth up to 4th order), 5 parametric EQs (bell, shelf or cut)
dynamics
compressor, limiter, incl. soft knee

Electrical specs

max. analog input level
+15 dBu
voltage gain
17 dB ±0.5 dB
input impedance
95 kΩ
output power PR
250 W @ 4 Ω (THD <= 0.05%)
125 W @ 8 Ω (THD <= 0.04%)
frequency response
-3 dB @ 10 Hz
-2 dB @ 50 kHz
SNR
> 112 dB
typ. THD (10 Hz - 30 kHz)
<= 0.05 % at 15 dBu
< 0.01 % at 0 dBu
0.03% at -20 dBu
inter channel cross talk
< 64 dB
idle loss
< 270 W
standby power consumption
< 2.5 W

Maximum ratings

air temperature
10° C - 30° C
input voltage
100–120 VAC | 220–240 VAC, 50–60 Hz (factory fitted)
minimum loads
≥ 4 Ω (single channel)
≥ 8 Ω (bridged)

* optional module
